Darktrace cyber analysts are world-class experts in threat intelligence, threat hunting and incident response, and provide 24/7 SOC support to thousands of Darktrace customers around the globe. Inside the SOC is exclusively authored by these experts, providing analysis of cyber incidents and threat trends, based on real-world experience in the field.
Written by
Max Heinemeyer
Global Field CISO
Share
24
Oct 2017
This blog post describes the currently circulating ransomware called BadRabbit and how Darktrace’s machine learning technology detects it. BadRabbit is a self-propagating piece of malware that uses SMB to spread laterally. The campaign is reminiscent of the WannaCry and NotPetya attacks seen earlier this year. Some of the functionality in BadRabbit and the modus operandi of how it infects the targets is similar to the NotPetya attack.
The attack initially hit companies in Russia and Ukraine on October 24th, 2017. Since, the ransomware has spread to other countries across the world as well.
Infection process
The initial infection vector appears to be via drive-by downloads and social engineering using fake Adobe Flash player files. Various news and media websites predominantly but not exclusively in Russia and Ukraine served their visitors with pop-up alerts asking them to download Adobe Flash player software updates. It is unclear at this point if the websites were compromised, or if the advertisement networks were leveraged to display the fake Adobe Flash downloads.
This technique of presenting users with fake updates, commonly Adobe Flash, containing ransomware, adware or other forms of malware, has gained traction in the last six months. The same approach is often applied to trick users into inadvisable actions, such as downloading malware when browsing TV streaming websites, or torrent websites.
Once downloaded, a user has to execute the fake Adobe Flash player with administrative credentials manually. No exploits are used to automatically execute the malware. The malware creates a scheduled task for another file upon execution. The ransomware then encrypts files on the compromised devices using a hard-coded list of file extensions using a RSA 2048 key. The criminals demand a Bitcoin payment for decrypting the files. Users are pointed to a .onion website, which has to be accessed via Tor, to pay the ransom.
BadRabbit can brute-force its way over SMB to other devices on the network using a hard-coded list of common credentials. The malware appears to contain a stripped-down version of the Mimikatz tool which is used to gather credentials on Windows machines. This is likely used to further enhance its lateral movement capabilities using SMB.
Update (October 30, 2017): As the investigation of BadRabbit capabilities continued over the weekend, new details about how BadRabbit spreads have been uncovered. BadRabbit appears to be using the EternalRomance exploit that targets CVE-2017-0145, patched by Microsoft in March 2017, to propagate within the internal network over SMB. As Darktrace’s AI does not rely on identifying individual exploits to detect breaches, this latest discovery does not affect Darktrace’s capability to identify BadRabbit infections. All of the previously identified detection capabilities still hold true.
Darktrace instantly detects BadRabbit
Darktrace has strong detection capabilities for this campaign without the use of any signatures. In fact, we alerted a number of our customers within seconds of the initial fake Flash Player download on their respective networks, and well before the extent of the campaign was publicly known.
The initial fake Adobe Flash Player download from 1dnscontrol[.]com is immediately detected as a suspicious download:

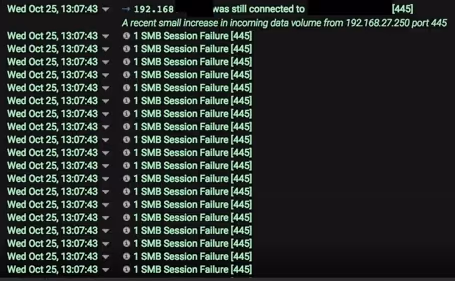

If the early signs of BadRabbit go undetected, the infected devices start brute-forcing access to other devices on the network using SMB - causing thousands of SMB session login attempts per endeavored lateral movement over port 445. This highly anomalous behavior marks a sharp departure from customers’ normal ‘pattern of life’, making BadRabbit very easy to detect for Darktrace’s machine learning technology. Within seconds, Darktrace alerted the affected organizations about this attack flagging it as ‘SMB Session Brute Force’. The below shows an ongoing lateral movement attempt from an infected device to another client device using SMB session brute-force.
Infected devices make connection attempts to one or two seemingly randomly generated IP addresses on the internet over port 445 and also port 139. Examples of these failed connection attempts are displayed below. Darktrace instantly recognized this as unusual behavior for the infected device:
Compromised devices will attempt to move laterally on the network in a search for other devices to infect. Darktrace’s AI algorithms can swiftly recognize this anomalous behavior, alerting the affected organization in real time about these ‘Unusual Internal Connections’, as well as potential ‘Network Scans’.
The below model breaches seen in Darktrace are expected in a BadRabbit infection. Please be aware that not all models listed below are expected to breach in every infection - this depends on the actual behavior observed by Darktrace.
The Darktrace ‘Omnisearch’ and ‘Advanced Search’ features can be used to identify any connections made to the known network Indicators of Compromise:
1dnscontrol[.]com(hosting the fake Adobe Flash player file)185.149.120[.]3(static IP observed, victims HTTP POSTing to the IP)
Conclusion
BadRabbit is a machine-speed ransomware attack that exhibits some of the functionality and infection mechanics of the WannaCry and NotPetya breaches observed earlier this year. The BadRabbit malware masks itself as an ‘Adobe Flash’ software update, tempting unsuspecting users to initiate a download. After the initial impact, the attack can spread from machine to machine without human intervention.
Darktrace’s AI algorithms are quick to detect the highly anomalous patterns of behavior that BadRabbit triggers on a network, alerting the security team in real time. We have seen BadRabbit bypass traditional security controls around the globe, demonstrating once again the futility of attempting to identify and stop threats with rules and signatures. As Darktrace’s machine learning technology doesn’t rely on any assumptions of what ‘bad’ looks like and detects unfolding attacks not by what they are but by what they do, it is very powerful at catching and stopping ransomware attacks like BadRabbit in real time.
Darktrace cyber analysts are world-class experts in threat intelligence, threat hunting and incident response, and provide 24/7 SOC support to thousands of Darktrace customers around the globe. Inside the SOC is exclusively authored by these experts, providing analysis of cyber incidents and threat trends, based on real-world experience in the field.
Chinese APT Campaign Targets Entities with Updated FDMTP Backdoor
Darktrace have identified activity consistent with Chinese-nexus operations, a Twill Typhoon-linked campaign targeting customer environments, primarily within the Asia-Pacific & Japan (APJ) region
Beginning in late September 2025, multiple affected hosts were observed making requests to domains impersonating content delivery networks (CDNs), including infrastructure masquerading as Yahoo- and Apple-affiliated services. Across these cases, Darktrace identified a consistent behavioral execution pattern: the retrieval of legitimate binaries alongside malicious Dynamic Link Libraries (DLLs), enabling sideloading and execution of a modular .NET-based Remote Access Trojan (RAT) framework.
The activity aligns with patterns described in Darktrace’s previous Chinese-nexus operations report, Crimson Echo. In this case, observed modular intrusion chains built on legitimate software, and staged payload delivery. Threat actors retrieve legitimate binaries alongside configuration files and malicious DLLs to enable sideloading of a .NET-based RAT.
Observed Campaign
Across cases, the same ordered sequence appears: retrieval of a legitimate executable, (2) retrieval of a matching .config file, (3) retrieval of the malicious
DLL, (4) repeated DLL downloads over time, and (5) command-and-control (C2) communication. The .config file retrieves a malicious binary, while the legitimate binary provides a legitimate process to run it in.
Darktrace assesses with moderate confidence that this activity aligns with publicly reported Twill Typhoon tradecraft. The observed use of FDMTP, DLL sideloading, and overlapping infrastructure is consistent with previously observed operations, though not unique to a single actor. While initial access was not directly observed, previous Twill Typhoon campaigns have typically involved spear-phishing.
What Darktrace Observed
Since late September 2025, Darktrace has observed multiple customer environments making HTTP GET requests to infrastructure presenting as “CDN” endpoints for well-known platforms (including Yahoo and Apple lookalikes). Across cases, the affected hosts retrieved legitimate executables, then matching .config files (same base filename), then DLLs intended for sideloading. The sequencing of a legitimate binary + configuration + DLL has been previously observed in campaigns linked to China-nexus threat actors.
In several cases, affected hosts also issued outbound requests to a /GetCluster endpoint, including the protocol=Dotnet-Tcpdmtp parameter. This activity was repeatedly followed by retrieval of DLL content that was subsequently used for search-order hijacking within legitimate processes.
In the September–October 2025 cases, Darktrace alerting commonly surfaced early-stage registration and C2 setup behaviors, followed by retrieval of a DLL (e.g., Client.dll) from the same external host, sometimes repeatedly over multiple days, consistent with establishing and maintaining the execution chain.
In April 2026, a finance-sector endpoint initiated a series of GET requests to yahoo-cdn[.]it[.]com, first fetching legitimate binaries (including vshost.exe and dfsvc.exe), then repeatedly retrieving associated configuration and DLL components (including dfsvc.exe.config and dnscfg.dll) over an 11-day window. The use of both Visual Studio hosting and OneClick (dfsvc.exe) paths are used to ensure the malware can run in the targeted environment.
Technical Analysis
Initial staging and execution
While the initial access method is unknown, Darktrace security researchers identified multiple archives containing the malware.
A representative example includes a ZIP archive (“test.zip”) containing:
A legitimate executable: biz_render.exe (Sogou Pinyin IME)
A malicious DLL: browser_host.dll
Contained within the zip archive named “test.zip” is the legitimate binary “biz_render.exe”, a popular Chinese Input Method Editor (IME) Sogou Pinyin.
Alongside the legitimate binary is a malicious DLL named “browser_host.dll”. As the legitimate binary loads a legitimate DLL named “browser_host.dll” via LoadLibraryExW, the malicious DLL has been named the same to sideload the malicious DLL into biz_render.exe. By supplying a malicious DLL with an identical name, the actor hijacks execution flow, enabling the payload to execute within a trusted process.
The legitimate binary invokes the function GetBrowserManagerInstance from the sideloaded “browser_host.dll”, which then performs XOR-based decryption of embedded strings (key 0x90) to resolve and dynamically load mscoree.dll.
The DLL uses the Windows Common Language Runtime (CLR) to execute managed .NET code inside the process rather than relying solely on native binaries. During execution, the loader loads a payload directly into memory as .NET assemblies, enabling an in-memory execution.
C2 Registration
A GET request is made to:
GET /GetCluster?protocol=DotNet-TcpDmtp&tag={0}&uid={1}
with the custom header:
Verify_Token: Dmtp
This returns Base64-encoded and gzip-compressed IP addresses used for subsequent communication.
Figure 2: Decoded IPs.
Staged payload retrieval
Subsequent activity includes retrieval of multiple components from yahoo-cdn.it[.]com. The following GET requests are made:
Dfsvc.exe is the legitimate Windows ClickOnce Engine, part of the .NET framework used for updating ClickOnce Applications. Accompanying dfsvc.exe is a legitimate dfsvc.exe.config file that is used to store configuration data for the application. However, in this instance the malware has replaced the legitimate dfsvc.exe.config with the one retrieved from the server in: C:\Windows\Microsoft.NET\Framework64\v4.0.30319.
Additionally, vhost.exe the legitimate Visual Studio hosting process is retrieved from the server, along with “Microsoft.VisualStudio.HostingProcess.Utilities.Sync.dll” and “config.etl”. The DLL is used to decrypt the AES encrypted payload in config.etl and load it. The encrypted payload is dnscfg.dll, which can be loaded into vshost instead of dfsvc, and may be used if the environment does not support .NET.
Figure 3: ClickOnce configuration.
The malicious configuration disables logging, forces the application to load dnscfg.dll from the remote server, and uses a custom AppDomainManager to ensure the DLL is executed during initialization of dfsvc.exe. To ensure persistence, a scheduled task is added for %APPDATA%\Local\Microsoft\WindowsApps\dfsvc.exe.
Core payload
The DLL dnscfg.dll is a .NET binary named Client.TcpDmtp.dll. The payload is a heavily obfuscated backdoor that generates its logic at runtime and communicates with the command and control (C2) over custom TCP, DMTP (Duplex Message Transport Protocol) and appears to be an updated version of FDMTP to version 3.2.5.1
Once connected, the malware enters a persistent loop (LoopMessage), enabling it to receive commands from the remote server.
Figure 5: DMTP Connect function.
Rather than referencing values directly, they are retrieved through containers that are resolved at runtime. String values are stored in an encrypted byte array (_0) and decrypted by a custom XOR-based string decryption routine (dcsoft). The lower 16 bits of the provided key are XORed with 0xA61D (42525) to derive the initial XOR key, while subsequent bits define the string length and offset into the encrypted byte array. Each character is reconstructed from two encrypted bytes and XORed with the incrementing key value, producing the plaintext string used by the payload.
Figure 6: Decrypted strings.
Embedded in the resources section are multiple compressed binaries, the majority of which are library files. The only exceptions are client.core.dll and client.dmtpframe.dll.
Figure 7: Resources.
Modular framework and plugins
The payload embeds multiple compressed libraries, notably:
client.core.dll
client.dmtpframe.dll
Client.core.dll is a core library used for system profiling, C2 communication and plugin execution. The implant has the functionality to retrieve information including antivirus products, domain name, HWID, CLR version, administrator status, hardware details, network details, operating system, and user.
Figure 8: Client.Core.Info functions.
Additionally, the component is responsible for loading plugins, with support for both binary and JSON-based plugin execution. This allows plugins to receive commands and parameters in different formats depending on the task being performed.
The framework handles details such as plugin hashes, method names, task identifiers, caller tracking, and argument processing, allowing plugins to be executed consistently within the environment. In addition to execution management, the library also provides plugins with access to common runtime functionality such as logging, communication, and process handling.
Figure 9: Client.core functions.
client.dmtpframe.dll handles:
DMTP communication
Heartbeats and reconnection
Plugin persistence via registry:
HKCU\Software\Microsoft\IME\{id}
Client.dmtpframe.dll is built on the TouchSocket DMTP networking library and continues to manage the remote plugins. The DLL implements remote communication features including heartbeat maintenance, reconnection handling, RPC-style messaging, SSL support, and token-based verification. The DLL also has the ability to add plugins to the registry under HKCU/Software/Microsoft/IME/{id} for persistence.
Plugins observed
While the full set of plugins remains unknown, researchers were able to identify four plugins, including:
Persist.WpTask.dll - used to create, remove and trigger scheduled Windows tasks remotely.
Persist.registry.dll - used to manage registry persistence with the ability to create, and delete registry values, along with hidden persistence keys.
Persist.extra.dll - used to load and persist the main framework.
Assist.dll - used to remotely retrieve files or commands, as well as manipulate system processes.
Figure 10: Plugins stored in IME registry.
Figure 11: Obfuscated script in plugin resources.
Persist.extra.dll is a module that is used to load a script “setup.log” to load and persist the main framework. Stored within the resources section of the binary is an obfuscated script that creates a .NET COM object that is added to the registry key HKCU\Software\Classes\TypeLib\ {9E175B61-F52A-11D8-B9A5-505054503030} \1.0\1\Win64 for persistence. After deobfuscating this script, another DLL is revealed named “WindowsBase.dll”.
Figure 12: Registry entry for script.
The binary checks in with icloud-cdn[.]net every five minutes, retrieves a version string, downloads an encrypted payload named checksum.bin, saves it locally as C:\ProgramData\USOShared\Logs\checksum.etl, decrypts it with AES using the hardcoded key POt_L[Bsh0=+@0a., and loads the decrypted assembly directly from memory via Assembly.Load(byte[]). The version.txt file acts as an update marker so it only re-downloads when the remote version changes, while the mutex prevents duplicate instances.
Figure 13: USOShared/Logs.
Checksum.etl is decrypted with AES and loaded into memory, loading another .NET DLL named “Client.dll”. This binary is the same as “dnscfg.dll” mentioned at the start and allows the threat actors to update the main framework based on the version.
Conclusion
Across cases, Darktrace consistently observed the following sequence:
Retrieval of legitimate executables
Retrieval of DLLs for sideloading
C2 registration via /GetCluster
This approach is consistent with broader China-nexus tradecraft. As outlined in Darktrace’s Crimson Echo report, the stable feature of this activity is behavioral. Infrastructure rotates and payloads can change, but the execution model persists. For defenders, the implication is straightforward: detection anchored to individual indicators will degrade quickly. Detection anchored to a behavioral sequence offer a far more durable approach.
Credit to Tara Gould (Malware Research Lead), Adam Potter (Senior Cyber Analyst), Emma Foulger (Global Threat Research Operations Lead), Nathaniel Jones (VP, Security & AI Strategy)
Edited by Ryan Traill (Content Manager)
Appendices
A detailed list of detection models and triggered indicators is provided alongside IoCs.
